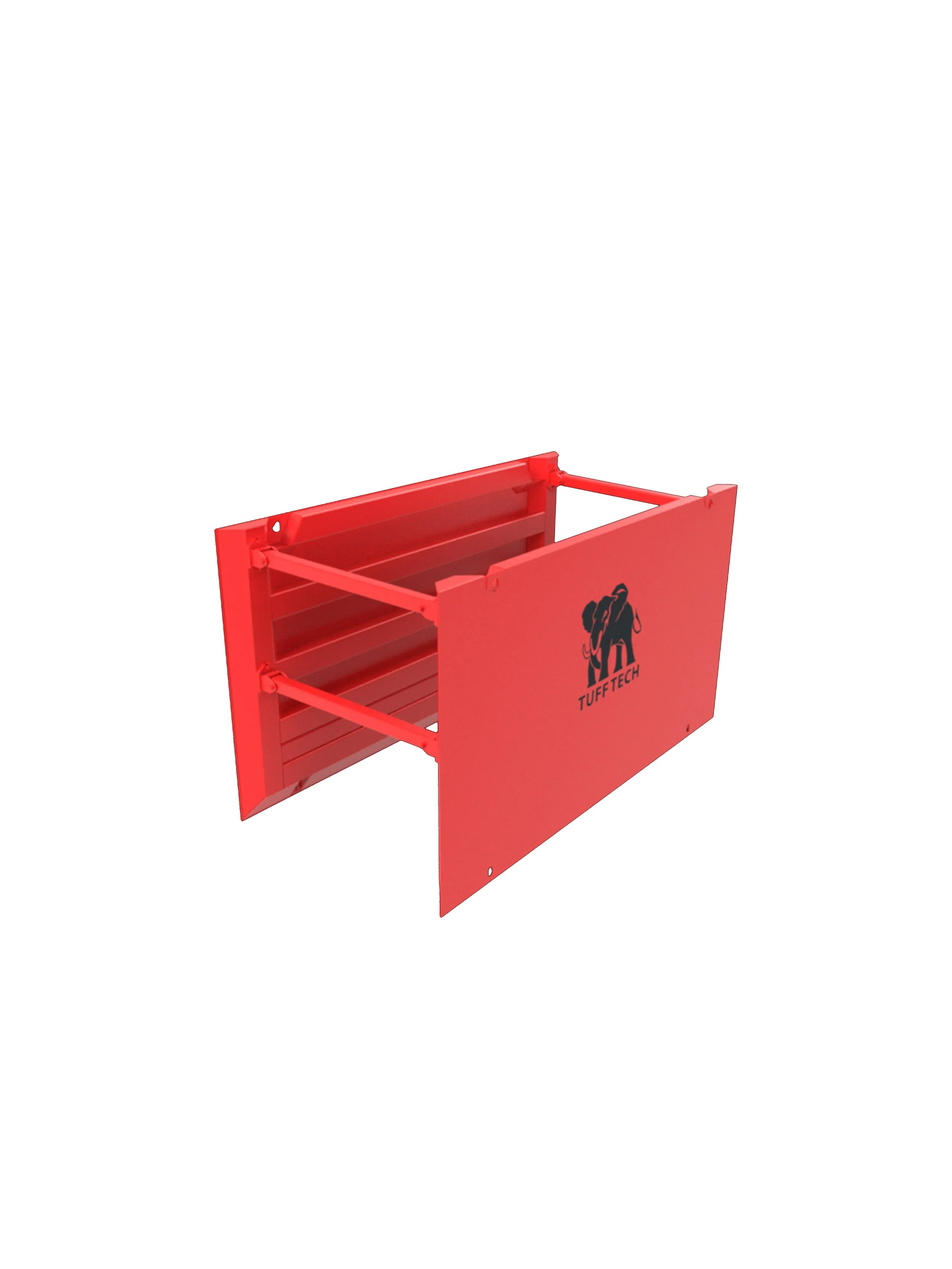

TUFFTECH TT-77 Steel - Heavy Duty Trench Shield - Lower Shield
TT-77 : K-2.4 Trench Shoring.
The TUFFTECH TT-77 (Heavy Duty) trench shoring system provides strong, lightweight, and reliable solutions, engineered from high-strength steel panels and available with struts in multiple lengths to suit different trench requirements.
Code Compliance: British and European Standards BS. EN 13331.1 & EN13331.2, Australia & New Zealand AS 4744.1:2025

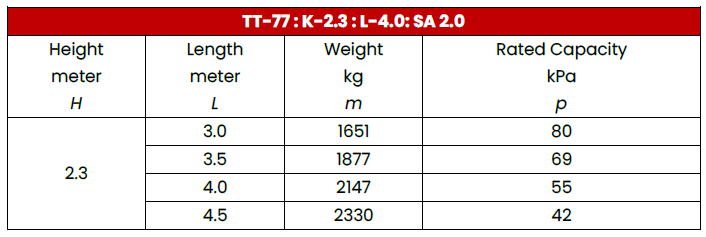

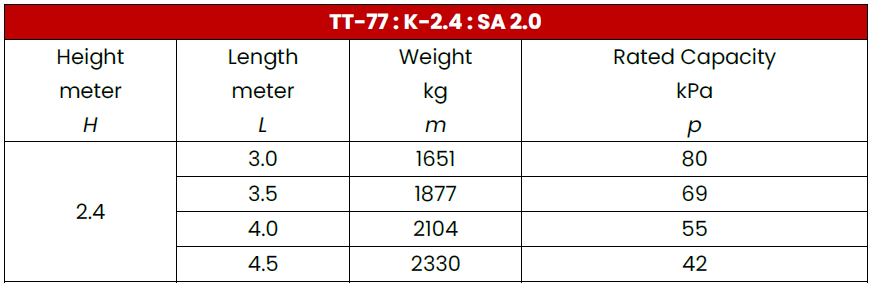

Product Specifications:
Features:
Relatively lightweight high-capacity, manufactured from steel
Robust and reliable, fully sealed working face
27 ton (13.5 ton x 2) extraction hook points
Stackable with full extraction capability
Range of strut lengths available made to order up to 4 metres width overall
Easy to assemble and repair (weldable)
Cutting edge on lower panels
